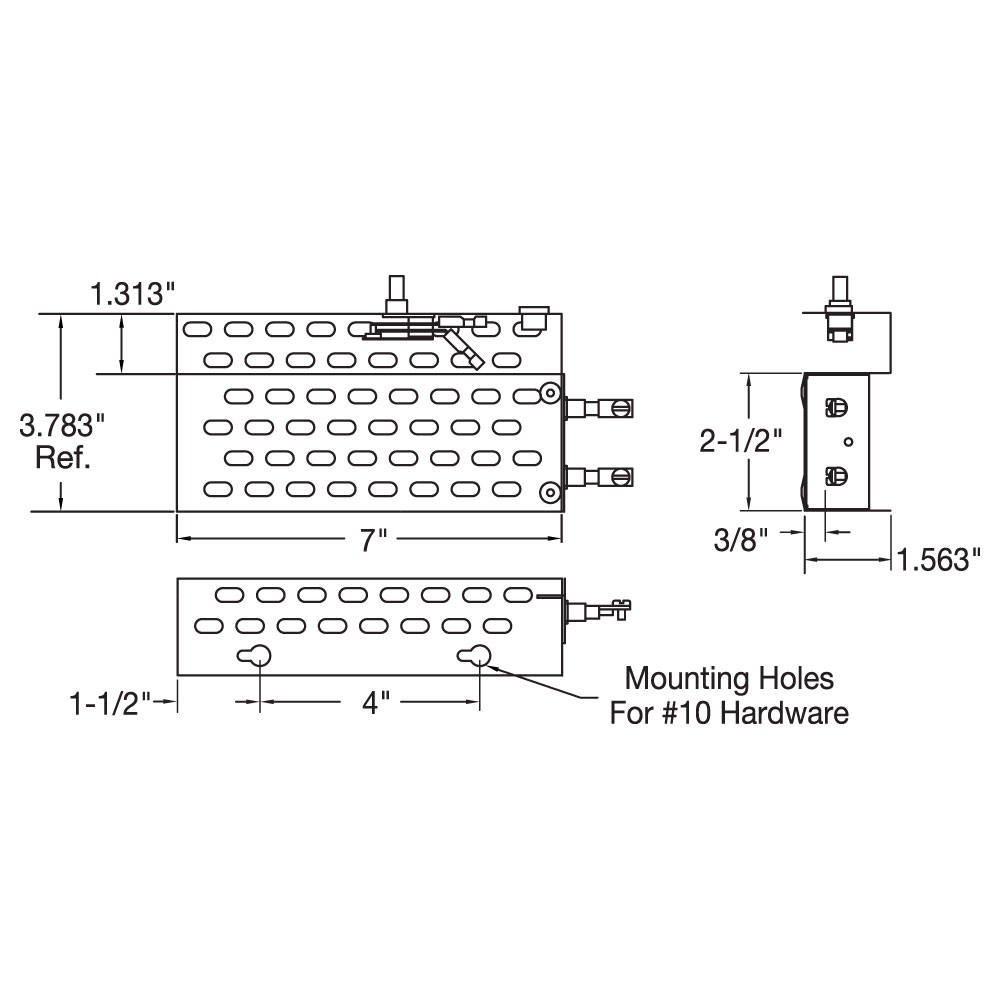

Type 1: Box Style
- Electrical Termination: Type T – 10-32 screw terminals
- Box Style Guard is perforated aluminzed steel

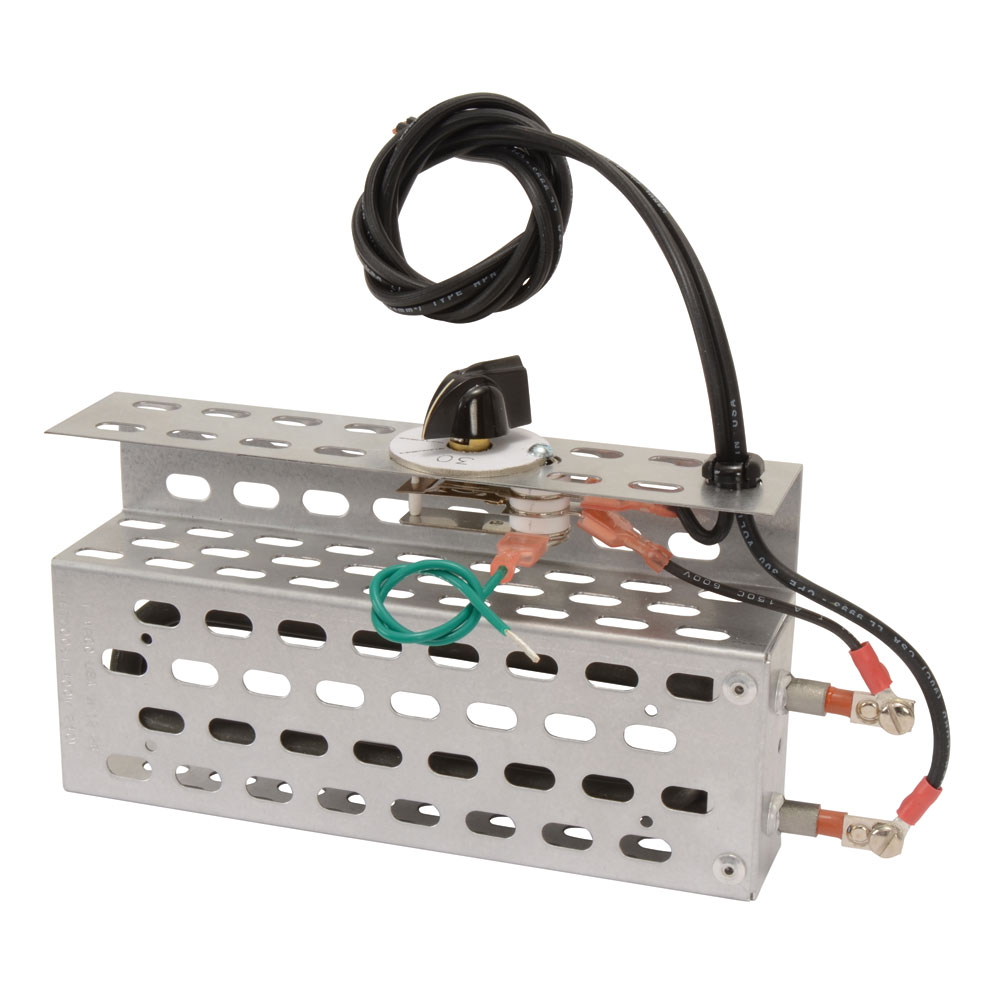

Type 2: Open Style
- Electrical Termination: Type L – Terminal Lug
- Available with 30-150°F thermostat prewired with 36" HPN line cord
- Open Style Guard is perforated aluminized steel
Remote Thermostats for Enclosure Heaters
- Pressure Sensitive Adhesive for easy mounting
- Standard 16ga Teflon® lead length: 48"
- Can easily be located anywhere in the enclosure using the pressure sensitive adhesive.
- Any standard thermostat can be used (see thermostats for available ranges)
- Silicone rubber base and enclosure
- Ratings: 10A/250 Vac, 15A/120 Vac
- Part Number: EHA00005 (pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly.
